The Nigerian manufacturing and packaging industry is rapidly expanding across pharmaceuticals, beverages, wines, distilleries, cosmetics, and food sectors. With growing consumer demand, businesses require faster, more reliable, and tamper-proof packaging solutions.

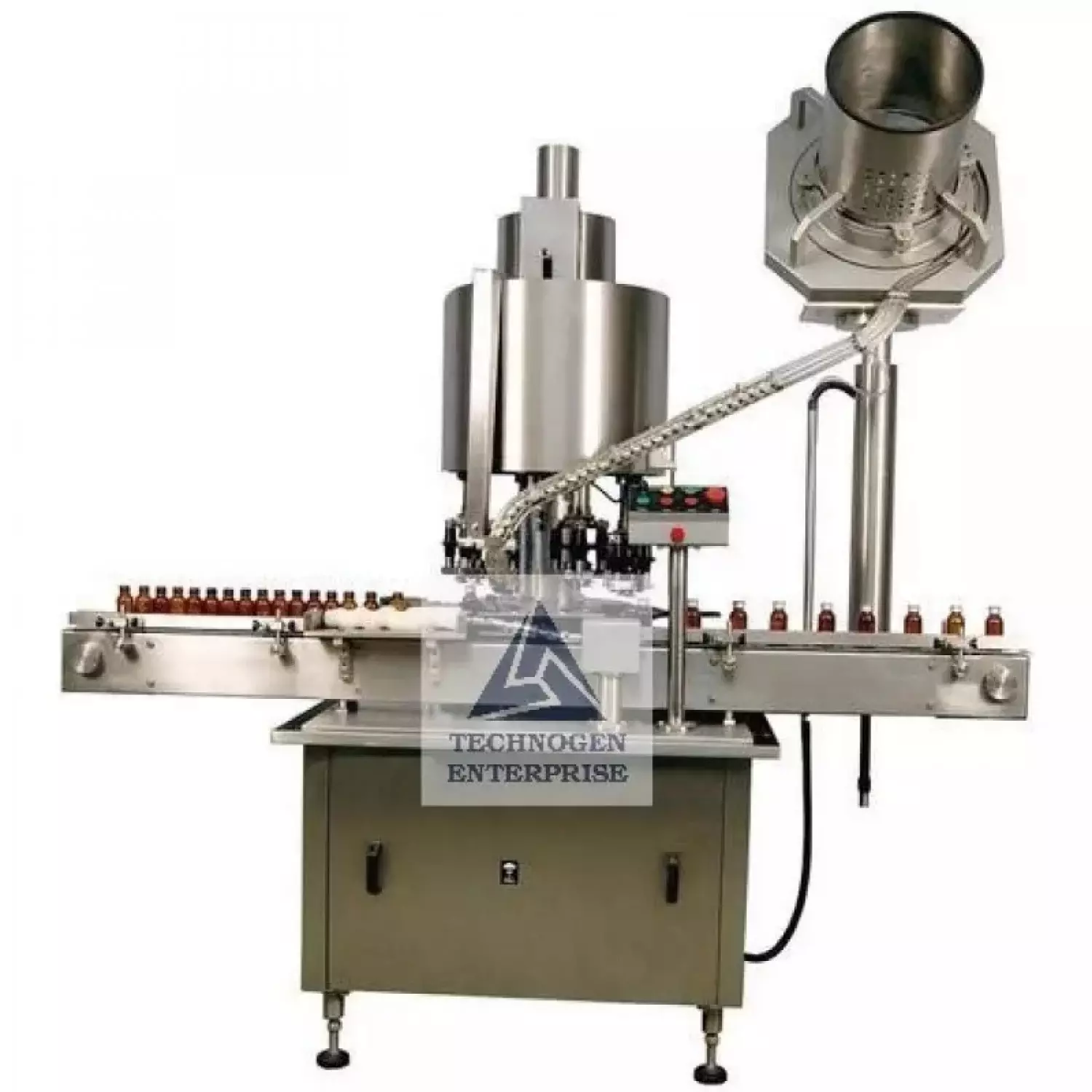

Technogen Enterprise, a leading manufacturer, supplier, and exporter of capping machines, proudly introduces the Automatic Multi-Head Rotary ROPP Capping Machine for the Nigeria market. Built with stainless steel 304, advanced safety features, and modular designs, this machine is engineered for efficiency, durability, and regulatory compliance.
With multiple head configurations , 4-head, 6-head, 8-head, and 12-head models – our ROPP capper caters to production speeds ranging from 60 to 200 bottles per minute, making it an ideal solution for Nigerian industries that demand high-speed bottling with uncompromised sealing quality.
Why ROPP Capping Matters for Nigeria
ROPP (Roll Over Pilfer Proof) caps are widely used in Nigeria across pharma, wine, and beverage sectors because they:
Provide tamper-evident sealing that builds consumer trust.
Ensure airtight closure, enhancing product shelf life.
Prevent counterfeiting, a growing challenge in the Nigerian market.
Support compliance with NAFDAC and international packaging standards.
By integrating Technogen’s Automatic Multi-Head ROPP Capping Machine, Nigerian businesses gain faster production, tamper-proof packaging, and reduced downtime, giving them a competitive edge.
Salient Features of Multi-Head ROPP Capping Machine
cGMP & Modular Design – Built as per global Current Good Manufacturing Practices.
Rotary Motion System – Ensures continuous, high-speed, and smooth operation.
Premium Matt Finish – Provides corrosion resistance and a professional appearance.
High-Quality Material Use – SS 304, nylon, and aluminum ensure hygiene and long life.
Synchronized Single Motor – Smooth coordination of conveyor, star wheels, and turret.
Intelligent Cap Detection – Photoelectric sensors stop the machine if no cap is detected.
No Bottle–No Cap Mechanism – Prevents wastage and ensures reliable sealing.
Adjustable Sealing Pressure – Accommodates different cap diameters for precision sealing.
Multiple Cap Feeding Options – Vibrator feeder, mechanical orientator, or waterfall elevator.
Quick Changeover – Easy adaptation for different bottle and cap sizes.
6-Digit Production Counter – Helps monitor and control daily output.
Emergency Stop Button – Mushroom-type emergency switch for operator safety.
Virtually Maintenance-Free – Designed to minimize downtime.
CE Certified Electronics – Ensures international compliance and reliability.
Add-On Features
PLC-HMI Touch Interface – User-friendly control for efficient operation.
Cap Feeder Elevator – Automated continuous cap feeding system.
Automatic Head Up-Down Adjustment – Simplifies height settings during changeovers.
Safety Cabinet – Toughened glass or acrylic cabinet for operator safety.
Validation Documents – Includes DQ, IQ, OQ, FAT, and SAT for regulatory compliance.
Technical Specifications of Multi-Head ROPP Capping Machine
| Particular | 4 Head Model (TGRCS-100) | 6 Head Model (TGRCS-150) | 8 Head Model (TGRCS-200) | 12 Head Model (TGRCS-250) |
|---|---|---|---|---|
| Direction | Left to Right | Left to Right | Left to Right | Left to Right |
| Automation Grade | Automatic | Automatic | Automatic | Automatic |
| Application | ROPP cap sealing for glass, PET, plastic bottles | Same | Same | Same |
| Brand | Technogen Enterprise | Technogen Enterprise | Technogen Enterprise | Technogen Enterprise |
| Speed | 60–80 BPM | 100–120 BPM | 150 BPM | 200 BPM |
| Machine Motion | Rotary Continuous Motion | Rotary Continuous Motion | Rotary Continuous Motion | Rotary Continuous Motion |
| Finish | Premium SS Matt Finish | Premium SS Matt Finish | Premium SS Matt Finish | Premium SS Matt Finish |
| Bottle Diameter | 22–70 mm | 22–70 mm | 22–70 mm | 22–70 mm |
| Bottle Height | 50–120 mm | 50–120 mm | 50–120 mm | 50–120 mm |
| Cap Size Range | 20–40 mm | 20–40 mm | 20–40 mm | 20–40 mm |
| No. of Capping Heads | 4 | 6 | 8 | 12 |
| Power Consumption | 1.25 HP | 1.25 HP | 2.5 HP | 2.5 HP |
| Cap Feeding | Vibrator feeder / Mechanical orientator | Same | Same | Same |
| Electrical Connection | 440V, 3 Phase, 50 Hz | 440V, 3 Phase, 50 Hz | 440V, 3 Phase, 50 Hz | 440V, 3 Phase, 50 Hz |
| Control Panel | SS 304 Pedant Type | SS 304 Pedant Type | SS 304 Pedant Type | SS 304 Pedant Type |
| Production Counter | 6-Digit Counter | 6-Digit Counter | 6-Digit Counter | 6-Digit Counter |
| Conveyor Height | Adjustable 800–850 mm | Adjustable 800–850 mm | Adjustable 800–850 mm | Adjustable 800–850 mm |
| Dimensions (mm) | 1830 x 800 x 1400 | 1830 x 800 x 1400 | 2130 x 915 x 1500 | 3050 x 1050 x 1500 |
| Net Weight (Kg) | 300 | 325 | 350 | 375 |
| Gross Weight (Kg) | 525 | 550 | 575 | 600 |
| Warranty | 1 Year | 1 Year | 1 Year | 1 Year |
Material of Construction
| Part / Assembly | Material of Construction |
|---|---|
| Main Body | Stainless Steel Pipe |
| Top Plate | MS Plate with SS 304 Cladding |
| Doors & Covers | SS 304 |
| Conveyor Plates | SS 304 |
| Conveyor Slat Chain | SS 304 |
| Feed Worm | Nylon / Delrin |
| Star Wheels | Nylon / Delrin |
| Guide Bracket | Polymid with SS Rod |
| Lifter Cam | Graded Casting |
| Main Capping Turret | Mild Steel with SS Cladding |
| ROPP Capping Head | Die Casting |
| Gears (Worm, Spindle, Pinion) | EN Series |
| Capping Chute | SS Fabricated |
Trade & Export Information
Minimum Order Quantity – 1 Unit
Production Capacity – 5 Machines per Month
Delivery Time – 4 to 5 Weeks
Packaging – ISBM-15 Compliant, Sea-Worthy Packaging
Nearest Seaport – Mundra, Gujarat, India
Payment Terms – International Trade via T/T or L/C
Applications in Nigerian Industries
Pharmaceutical Industry – Syrups, tonics, and medicine bottles.
Beverages Industry – Soft drinks, juices, and mineral water.
Wine & Distillery – Whiskey, brandy, vodka, and local Nigerian spirits.
Food Industry – Oils, sauces, and flavored syrups.
Cosmetics – Perfume, essential oils, and personal care packaging.
Chemical & Agro – Pesticides, lubricants, and chemicals requiring tamper-proof packaging.
Why Choose Technogen Enterprise in Nigeria?
Global Exporter with strong presence in African markets.
Custom-Built Machines to meet Nigeria-specific needs.
Reliable Technology with proven performance in high-demand industries.
After-Sales Service & Training for Nigerian clients.
Affordable Investment with high productivity returns.
The Automatic Multi-Head ROPP Capping Machine by Technogen Enterprise is a high-speed, durable, and precision-engineered packaging solution tailored for Nigeria’s dynamic industries. With modular models ranging from 4 to 12 heads, CE-certified electronics, tamper-proof sealing, and user-friendly operation, it delivers maximum efficiency and product safety.
Contact Technogen Enterprise today to explore how our Multi-Head ROPP Capping Machine can revolutionize your packaging line in Nigeria.
