Automatic Single Head Lug Capping Machine For Food & Dairy Industries In Nigeria
Automatic Single Head Lug Capping Machine Details

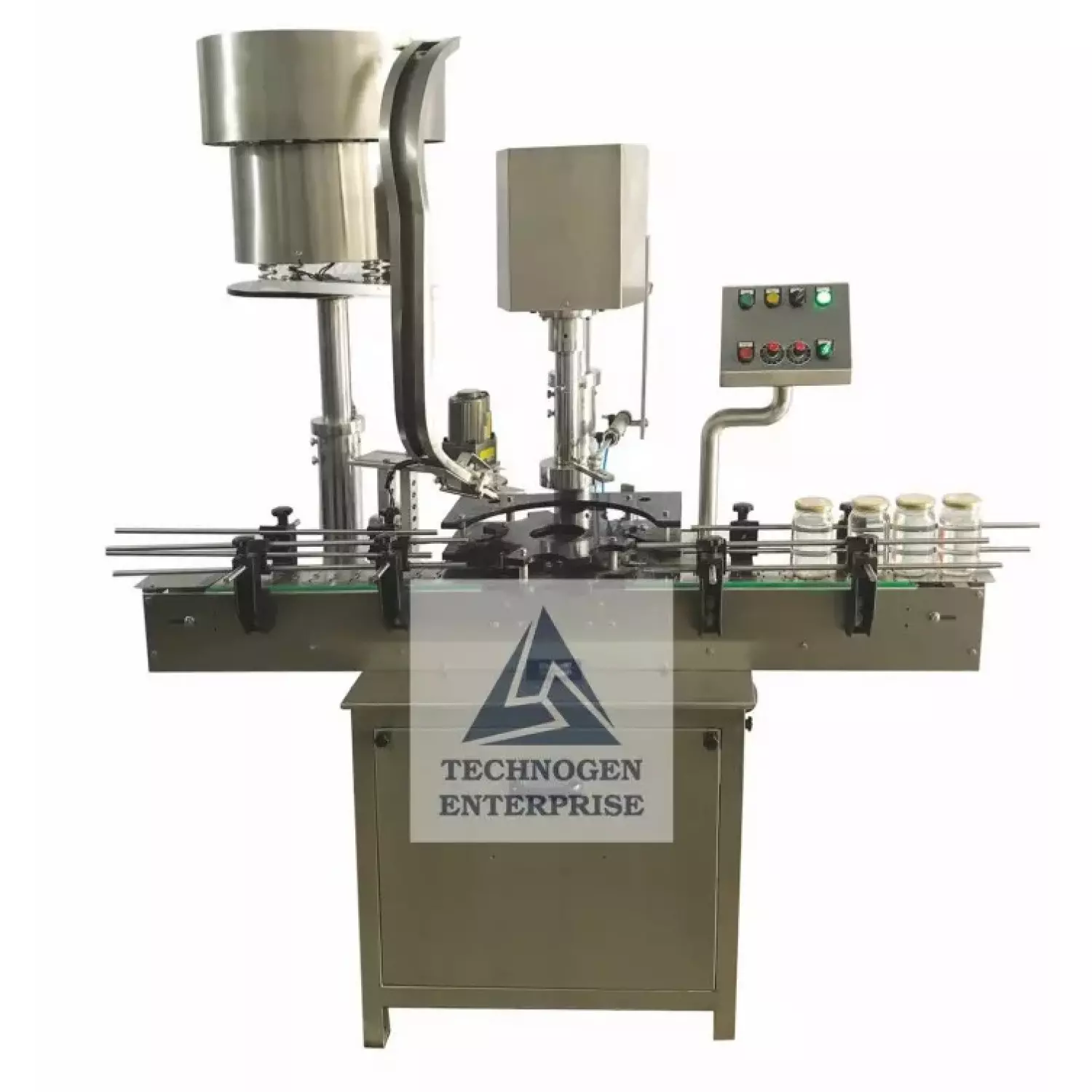

Advanced Automatic Single Head Lug Capping Machine – Model TGLC-50
Technogen Enterprise proudly presents the Automatic Single Head Lug Capping Machine – Model TGLC-50, an advanced solution for the food, dairy, milk, vinegar, and pickle industries. Designed for reliability, efficiency, and precision, this lug capping machine ensures consistent torque application for secure bottle sealing, streamlining production in Nigeria’s bustling industrial hubs such as Lagos, Abuja, Port Harcourt, Kano, and Kaduna.
Engineered with a combination of pneumatic and mechanical magnetic hysteresis clutch-based capping technology, the TGLC-50 stands out for delivering uniform torque while minimizing wastage. It features a “No Bottle – No Cap” system, ensuring no cap is wasted during production.
Whether you are operating a small-scale dairy unit in Ibadan or a large food processing plant in Lagos, the TGLC-50 is tailored to meet diverse production requirements efficiently.
Salient Features
Compact Design: Space-saving layout suitable for small and medium production lines.
Premium Material Contact Parts: All components in contact with bottles or lug caps are made of high-grade stainless steel, ensuring hygiene and longevity.
Synchronized Operations: Single motor drives the conveyor, star wheel system, and capping turret for smooth, coordinated motion.
Advanced Capping Head: Pneumatic-mechanical magnetic hysteresis clutch-based lug capping head for precise torque adjustment.
Efficient Cap Feeding: Cap feeder elevator and cap feeder vibrator ensure continuous and reliable feeding.
Quick Format Changeover: Easily switch between different bottle sizes without extensive downtime.
Applications
The TGLC-50 is ideal for industries across Nigeria, including:
Food & Beverage: Sauces, jams, pickles, and other packaged food items.
Dairy & Milk Processing: Milk bottles, yogurt containers, and cream bottles.
Vinegar Production: Bottled vinegar of various sizes.
Beverage Industry: Juice, flavored drinks, and other packaged liquids.
It is extensively used in major industrial hubs like Lagos (Apapa, Ikeja), Abuja, Kano, Port Harcourt, Onitsha, and Kaduna, where modern food and beverage production lines demand high efficiency and reliability.
Technical Specifications
| Feature | Specification |
|---|---|
| Direction | Left to Right |
| Type of Capping | Lug capping |
| Cap Pick on Bottle | Shut pick up |
| Power Consumption | 1.5 HP (Main Drive) |
| Output | 30–40 bottles per minute (depending on bottle diameter & cap size) |
| Number of Capping Heads | Single |
| Power Requirement | 230 V, 1 Phase, 50 Hz |
| Conveyor Height | Adjustable: 800–850 mm |
| Bottle Diameter | 22–100 mm |
| Bottle Height | 15–100 mm |
| Lug Caps Diameter | 22–84 mm |
| Machine Dimensions | 1830 mm (L) × 875 mm (W) × 1450 mm (H) |
Safety & Interlock Features
No Bottle – No Cap System ensures zero wastage.
Star Wheel Safety Clutch System halts machine operation in case of misalignment.
Automatic Orientator On/Off System for efficient cap alignment.
Emergency Stop Mechanism for enhanced operational safety.
Optional Add-On Features
PLC-HMI Interface: Advanced programmable control for precise production management.
Safety Cabinets: Toughened glass, polycarbonate, or acrylic enclosures with door interlocks for operator protection.
Advantages for Nigerian Industrial Production
High Efficiency: Achieve up to 40 bottles per minute, perfect for medium to large-scale operations in industrial zones like Lagos, Kano, and Port Harcourt.
Hygienic Operations: Stainless steel contact parts ensure compliance with food safety standards.
Reduced Downtime: Quick changeover capability allows flexible production schedules.
Energy Efficient: Operates on minimal power with optimal performance.
User-Friendly Controls: Intuitive PLC-HMI system allows operators to manage production easily.
Durable & Robust: Built to withstand continuous industrial use across Nigeria’s hot and humid climates.
Why Choose Technogen Enterprise
Technogen Enterprise has a proven track record in supplying high-quality capping machines across Nigeria, serving key industrial cities and food-processing clusters. Our TGLC-50 model is designed to meet the dynamic needs of modern production lines while delivering unmatched precision and reliability.
Whether setting up in Lagos’ Apapa industrial area, Abuja’s Gwarinpa district, Kano’s manufacturing belt, or Port Harcourt’s industrial zones, the TGLC-50 guarantees seamless integration into your production line, maximizing productivity while minimizing operational challenges.
This advanced Automatic Single Head Lug Capping Machine combines precision engineering, ease of use, and durability, making it the preferred choice for food, dairy, milk, vinegar, and pickle industries across Nigeria. The TGLC-50 ensures every bottle is securely capped, streamlining production and enhancing operational efficiency.
