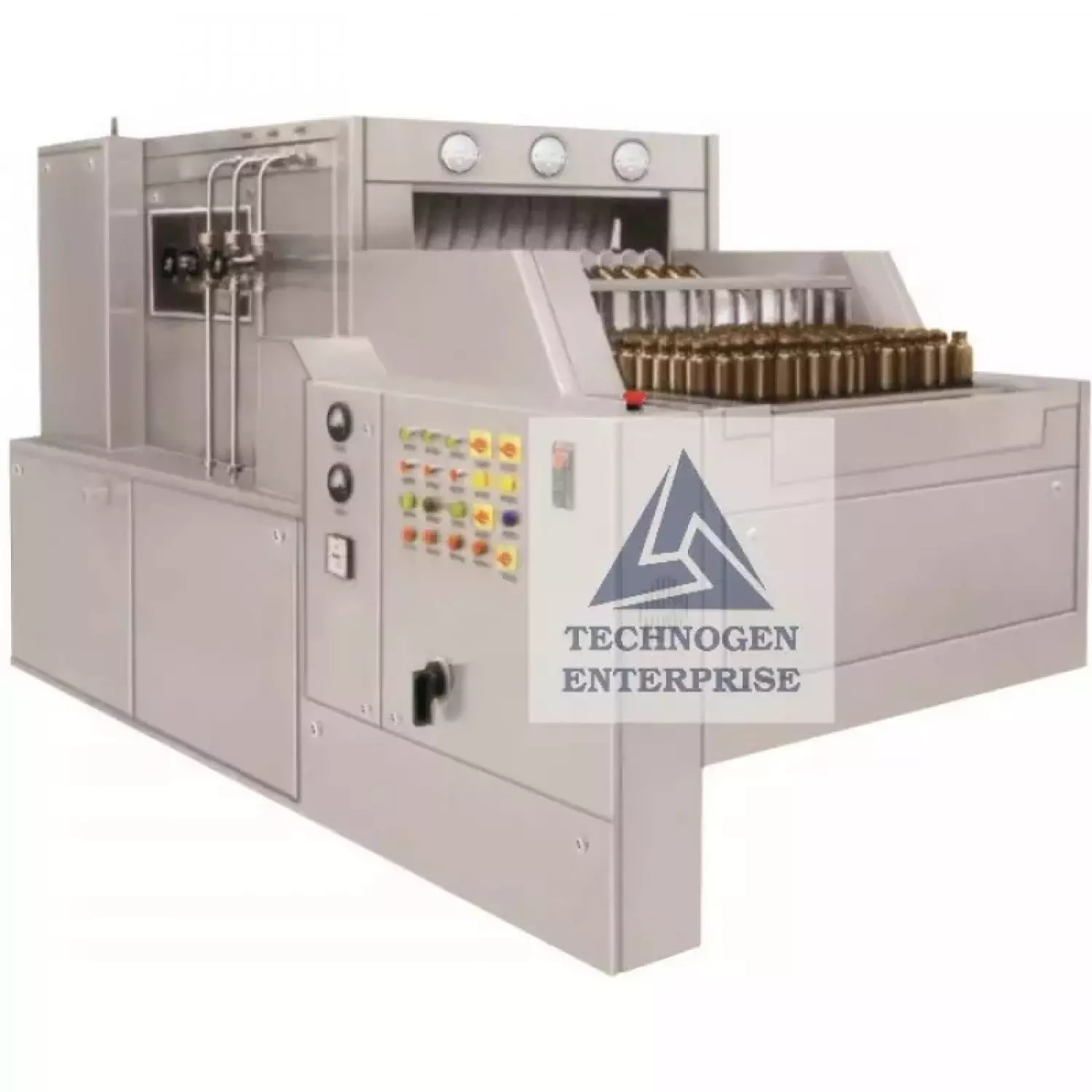

Automatic Tunnel Type Linear Bottle Washing Machine For Nigeria
Automatic Tunnel Type Linear Bottle Washing Machine Details
Technogen Enterprise proudly presents the Automatic Tunnel Type Linear Bottle Washing Machine, designed for Nigerian industries seeking a high-performance, fully automatic solution for washing glass, PET, HDPE, and plastic bottles. As a trusted manufacturer, exporter, and supplier, Technogen Enterprise specializes in producing advanced, durable, and efficient bottle washing machines tailored for diverse industrial applications in Nigeria.
This machine ensures thorough cleaning of both the internal and external surfaces of bottles using a linear intermittent motion. Designed for high-speed operations, it caters to industries such as pharmaceuticals, cosmetics, pesticides, beverages, and food processing. By combining robust engineering with user-friendly operation, this automatic tunnel washer ensures consistent hygiene and superior production efficiency for Nigerian bottling units.
Equipped with two AISI 316L stainless steel tanks, one for re-circulation water and one for DM (Deionized) water, this machine guarantees effective washing cycles with customizable sequences. It is capable of washing from 50 to 300 bottles per minute, making it suitable for both small-scale and high-volume bottling operations in Nigeria.
Key Features and Benefits
Our Automatic Tunnel Type Linear Bottle Washing Machine is designed with advanced features for optimal performance, reliability, and ease of maintenance:
CGMP Compliant Design: Ensures the highest standards of hygiene and safety for pharmaceutical and food industries.
Stainless Steel Construction: Machine body and doors made of durable SS 304 for longevity and corrosion resistance.
High-Pressure Spray Nozzles: Provide effective internal and external washing for perfect bottle cleanliness.
Advanced Spray Zones: The washing chamber is divided into multiple spray zones, with electrically controlled water spray duration for precise cleaning.
Customizable Washing Cycle: Washing duration and sequence can be adjusted to match specific production requirements.
Dual AISI 316L Tanks & Pumps: Separate tanks for re-circulated water and DM water, positioned for easy maintenance.
Glycrine-Filled Pressure Gauges: Three gauges to monitor DM water, recycled water, and compressed air pressures.
Sensorless Variable Frequency Drive (VFD): Provides smooth speed control for precise bottle handling.
Safety Features: Two emergency switches at in-feed and out-feed sides to ensure operator safety.
CE-Certified Electrical Components: Guarantees high-quality electrical performance and reliability.
Flexible Bottle Sizes: Handles bottles from 30 ml to 200 ml without major change parts; minimal adjustments required for different bottle sizes.
Optional Add-On Features: PLC-HMI interface, drying station, in-built pre-inspection unit, and bottle lifting device at in-feed for enhanced automation.
Washing Sequence
The automatic tunnel type linear bottle washing machine is designed to provide superior internal and external cleaning through multiple wash cycles:
Internal Washes: Five precise internal washes using high-pressure water and detergents.
External Washes: Two external washes to ensure spotless bottle exteriors.
Customizable Sequence: Washing sequence can be adapted to meet client requirements, optimizing efficiency and reducing water consumption.
Technical Specifications
The machine is available in multiple models to cater to different production requirements in Nigeria, from small-scale bottling to high-speed industrial operations.
| Parameter | TGBW-60T | TGBW-120T | TGBW-240T | TGBW-300T |
|---|---|---|---|---|
| Speed | Up to 60 Bottles/Minute | Up to 120 Bottles/Minute | Up to 240 Bottles/Minute | Up to 300 Bottles/Minute |
| Conveyor Height | 750 ± 50 mm | 750 ± 50 mm | 750 ± 50 mm | 750 ± 50 mm |
| Working Direction | Left to Right | Left to Right | Left to Right | Left to Right |
| Washing Sequence | 5 Internal Washes & 2 External Washes | 5 Internal Washes & 2 External Washes | 5 Internal Washes & 2 External Washes | 5 Internal Washes & 2 External Washes |
| Tanks | 2 x AISI 316L Tanks (Re-circulation Water & DM Water) | 2 x AISI 316L Tanks | 2 x AISI 316L Tanks | 2 x AISI 316L Tanks |
| Pressure Gauges | 3 Glycrine-Filled | 3 Glycrine-Filled | 3 Glycrine-Filled | 3 Glycrine-Filled |
| Number of Filters | 3 for Recycled Water, DM Water & Compressed Air | 3 | 3 | 3 |
| Air Consumption | 30–50 CFM @ 3–4 bar | 30–50 CFM | 30–50 CFM | 30–50 CFM |
| Fresh Water Consumption | 600–900 L/hr | 600–900 L/hr | 600–900 L/hr | 600–900 L/hr |
| DM Water Consumption | 600–900 L/hr | 600–900 L/hr | 600–900 L/hr | 600–900 L/hr |
| Power Requirement | 3–6 KW | 3–6 KW | 3–6 KW | 3–6 KW |
| Electrical Connection | 415 V, 3 Phase, 50 Hz, 4-core wire | 415 V, 3 Phase, 50 Hz, 4-core wire | 415 V, 3 Phase, 50 Hz, 4-core wire | 415 V, 3 Phase, 50 Hz, 4-core wire |
| Bottle Size | 30 ml to 200 ml (adjustable with minimal change parts) | 30–200 ml | 30–200 ml | 30–200 ml |
Applications in Nigeria
This machine is widely used across Nigerian industries that require high hygiene and precise bottle washing:
Pharmaceuticals: Syrups, liquid medicines, and supplements.
Cosmetics: Lotions, perfumes, creams, and essential oils.
Food & Beverage: Soft drinks, juices, sauces, and edible oils.
Pesticides & Chemicals: Small-volume chemical bottles requiring precise cleaning.
Its high-speed operation and customizable wash sequences make it suitable for both small and large-scale bottling operations across Nigeria.
Why Choose Technogen Enterprise in Nigeria
Local Market Expertise: Machines engineered for Nigerian operational conditions.
High Quality & Durability: Built from SS 304 & 316L for long-lasting performance.
Energy Efficient: Optimized power usage for local energy supply conditions.
Customizable Solutions: Wash sequences, add-on features, and tank arrangements according to client needs.
After-Sales Support: Technical support, training, and maintenance assistance in Nigeria.
Compact & Modular Design: Easy integration into existing production lines with minimal space requirements.
CE-Certified Electrical Components: Ensures safety and reliability for Nigerian industrial standards.
Advantages for Nigerian Businesses
High Productivity: Up to 300 bottles per minute, increasing operational efficiency.
Superior Hygiene: Five internal and two external washes ensure fully sanitized bottles.
Water Efficiency: Optional water recycling and precise wash cycles reduce utility costs.
Safety Features: Emergency switches and CE-certified electrical components enhance operator safety.
Versatility: Handles multiple bottle sizes and types, minimizing downtime for changeovers.
Automation Options: PLC-HMI interface and in-built pre-inspection units improve automation and reduce labor.
Conclusion
For Nigerian manufacturers seeking a reliable, efficient, and fully automatic bottle washing solution, the Automatic Tunnel Type Linear Bottle Washing Machine from Technogen Enterprise is the ideal choice. Its combination of high-speed operation, customizable wash sequences, robust construction, and optional automation features ensures maximum productivity while maintaining hygiene standards.
Investing in this machine allows Nigerian bottling units—across pharmaceuticals, cosmetics, beverages, and chemicals—to achieve superior efficiency, consistent bottle cleanliness, and reduced operational costs. Upgrade your production line today with Technogen Enterprise’s advanced TGBW Series Automatic Tunnel Bottle Washer designed for Nigerian market requirements.
