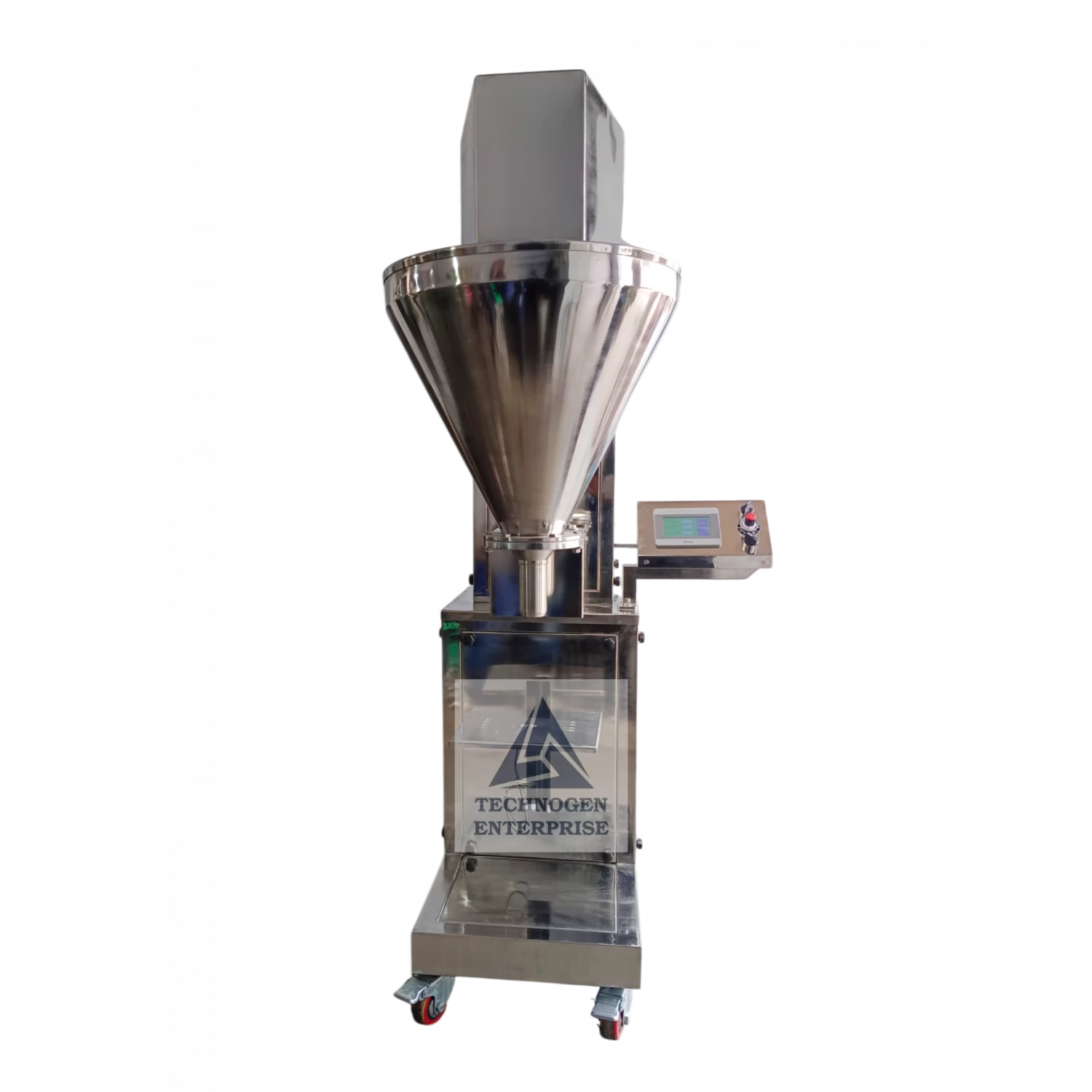

Semi Automatic Auger Powder Filling Machine
Semi Automatic Auger Powder Filling Machine Details
Technogen Enterprise is manufacturer & Supplier of range of semi-automatic auger powder filling machine Model No TGAPF-20S In Nigeria . Semi-automatic auger powder filling machine is perfect solution for industries where powder packing production is low and moderate. It is flawless choice for filling powders, granules & paste products into all types of containers. The Semi-automatic Auger powder filling machine can fill from 5 Grams to 1000 Grams in variety of container. The semi automatic model is available in servo motor configuration too where auger rotation is controlled with the help of state of art advance servo motor. Unit can be made available with optional
Salient features:
- CGMP Model
- Filling range from 5 grams to 1000 grams with the help of change part
- Accuracy ± 5 % in single doze.
- Machine main body and door is constructed using superior matt finished AISI 304 stainless steel material
- All contact parts with Powder are of AISI 316L only.
- A unit to fill variety of fine and granulated powder and can be used for various type of containers.
Technical specification:
Model | TGAPF-20S |
Output / minute | 20 to 25 Container per minute depending upon the fill volume and powder density |
Number of Filling head | 1 No. |
Fill Size | 5 Gms to 1 Kg. |
Electric Specification | 230 V Single phase 50 HZ |
Machine Dimensions | 1050 mm (L) x 1050 mm (W) x 1200 mm (H) |
Net Weight | 320 Kgs. |
Gross Weight | 575 Kgs. |
Change parts required | (a) Auger (b) Funnel |
Electrical supply | 3 Phase + Neutral + Earthing |
Electrical load | 0.75 KW |
